MTA Live Data Visualization

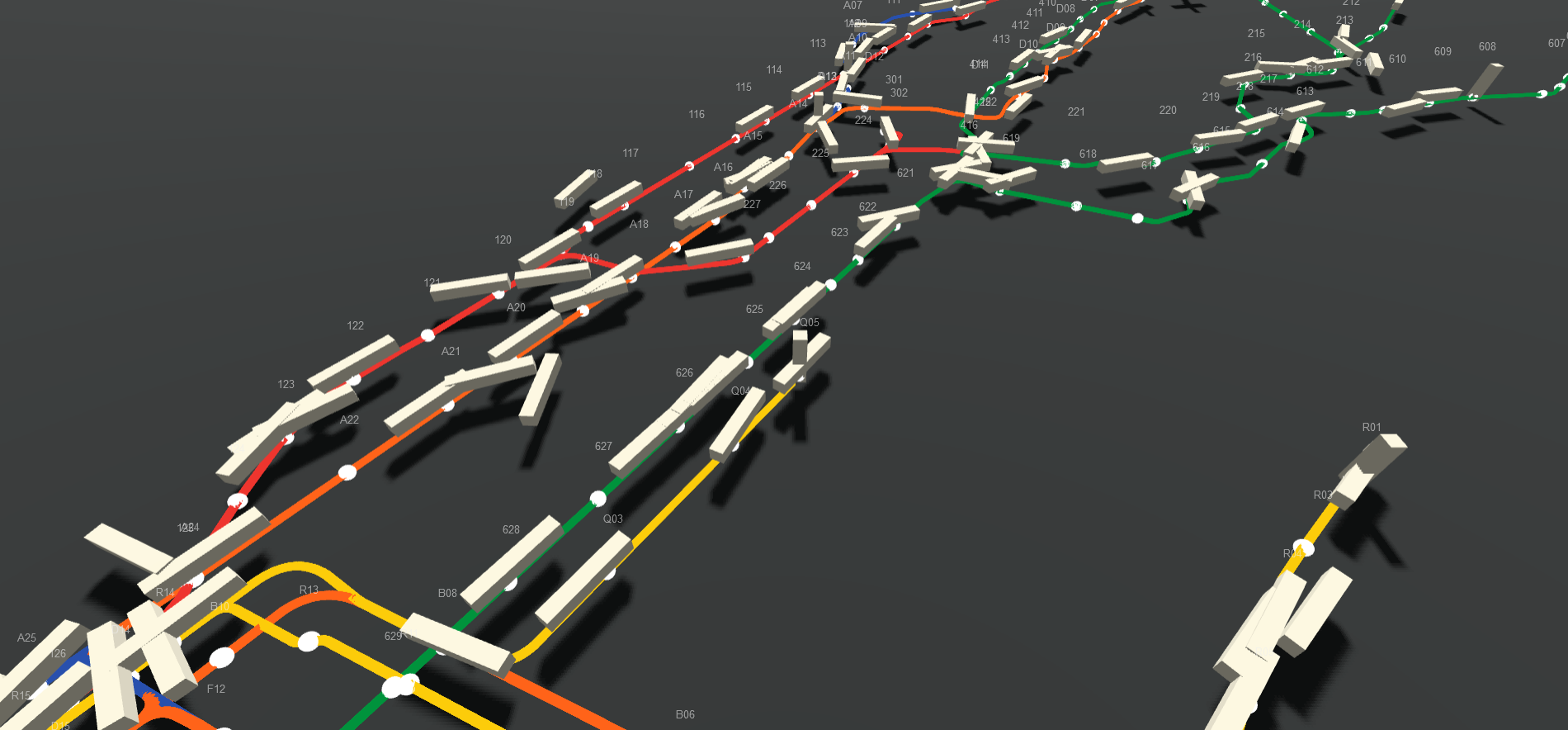

A screenshot of the app

This app provides a 3-D interactive view of the live state of the NYC subway system, as data is provided through the MTA GTFS-RT API. Train positions are interpolated from the most recent data, as a “best guess” based on the train’s anticipated arrival time at its next station. Although this is inexact, it is no less accurate than the information the MTA itself has on the tracks that have not implemented CBTC (Communications-Based Train Control). To my knowledge, CBTC data from the routes that have implemented it (the L and 7 lines) is not yet available through a real-time API. You can read more about the MTA’s CBTC rollout here.

Setup

There’s a Dockerfile now, so setting this up is actually quite easy. I’m working on a deployment to get this live using the docker image. Stay tuned. Meanwhile, run it yourself like so:

docker build -t mta .
docker run -p 3000:3000 mta

The site will be live at http://localhost:3000. For a non-containerized instance, run this instead:

npm install
mkdir -p ./data/rt
curl -L -o ./data/gtfs_subway.zip https://rrgtfsfeeds.s3.amazonaws.com/gtfs_subway.zip
unzip ./data/gtfs_subway.zip -d ./data/gtfs_subway
npm run build:server
npm run run:server

node dist/RealTime.js

Future Work

  • Live deploy: Deploy the server onto a public device to get this live for viewing.
  • Map overlay: Get 2D or 3D file from openstreetmap, google earth, or similar to add context.
  • Better tooltips: current tooltips are designed mostly for debugging purposes. Streamline these and format information in a more useful way.
  • Add details pane: provide more information about each train in a vertical pane.
  • Improve train interpolation: Fit train positions to the curves of their tracks and match their orientations as well.
  • Stop data: Add detailed interactivity for stations
    • Add hover and click functions to view stop details
    • Label stops with their actual names rather than IDs
    • Graphically represent conjoined stations with multiple stops
  • Improve train matching between data refreshes: sometimes trains are not correctly matched between realtime data sets and they seem to jump between locations.
    • Interpolate between updates: Trains that are correctly matched but receive a “drastic” update should accelerate toward their new location, but should not snap from place to place.
  • Continuous turning: Trains currently don’t animate orientation changes, they simply snap to the new direction they’ll point toward. Smooth this out.
  • Separate data updates from the animation loop: While the data fetch is appropriately separate from animations, the actual loading of the data into individual trains is not, so there is a brief hitch in the animations every 30 seconds. Separate this data further so that it doesn’t impact the UX.
  • Default animation loop: Add a default camera motion for nicer “screensaver” behavior.
  • Fix a bug: There is still one bug which interrupts updates occasionally. Investigate this.
